Multifamily Building Project
1. PROJECT DESCRIPTION
The project is developed on a plot of 320 square meters that has two fronts. In this case, we have developed a project to analyze the economic and commercial viability of a six-story building. Since the municipal regulations limit the height of the building, we chose not to include a basement for parking, as this would have increased construction costs without providing a significant economic benefit.
The project consists of 8 apartments, each with 2 parking spaces. As a fundamental requirement, all apartments have a balcony and a swimming pool.
The apartments located on the top floor have a different design due to municipal regulations that required us to set back the building on both fronts. This arrangement provided us with the opportunity to create the common area on a level higher than the bedrooms, thus taking advantage of the spacious terraces generated by the setbacks.
We hope that you find the project and the editable files to your liking.
2. PROJECT FEATURES
Plot: 320 square meters / 3444.45 square feet
Plot Dimensions: 16 m by 20 m / 52.49 ft by 65.62 ft
Height: 6 story Building
8 Apartments / 16 parking spaces
3. DELIVERED FILES
A. Instructions
B. Text fonts
C. CTB for printing

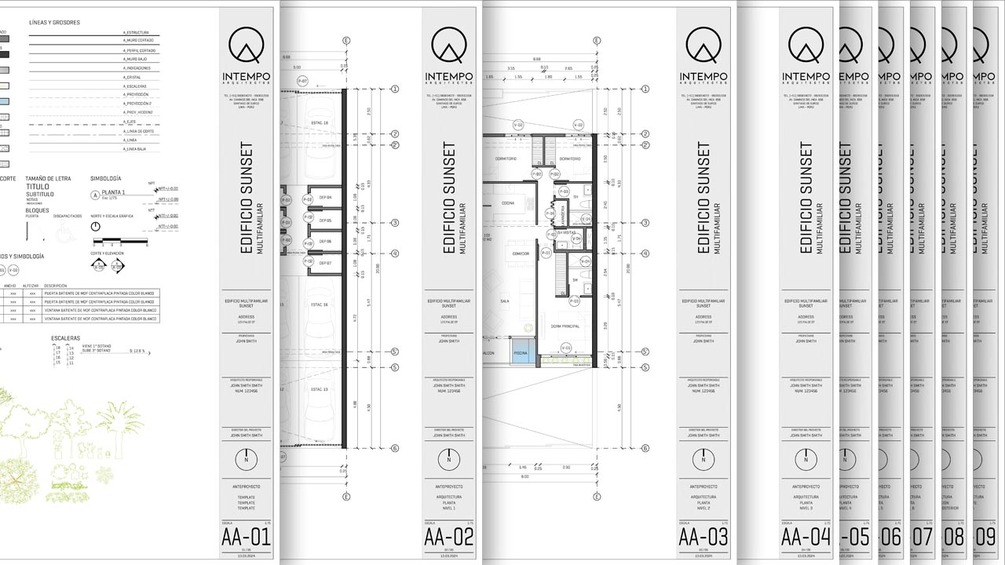

D. AutoCAD files (.dwg) (Template, floor plans, elevation and section)
E. PDF plans

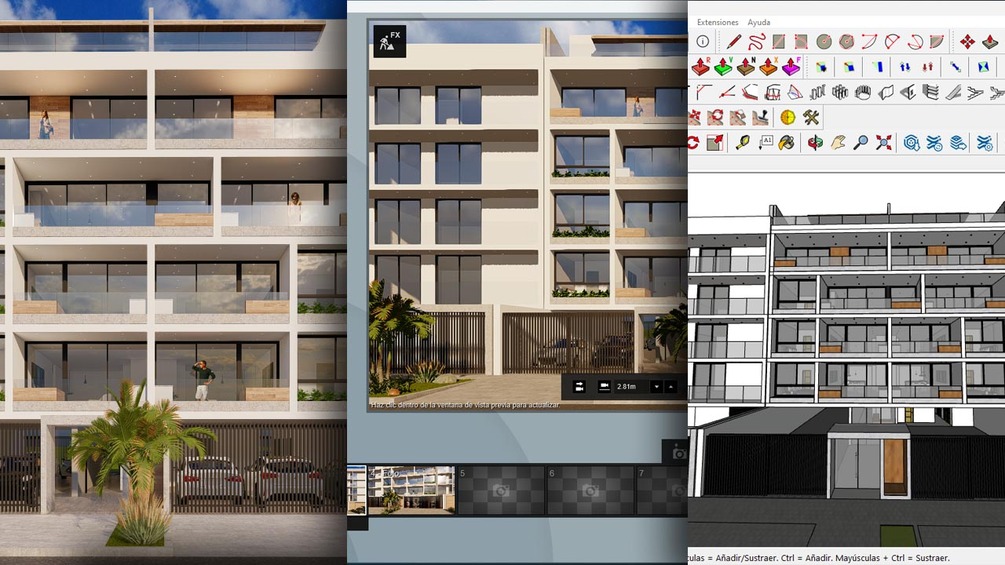

F. SketchUp 2020 - 3D model File
G. Lumion 11 File

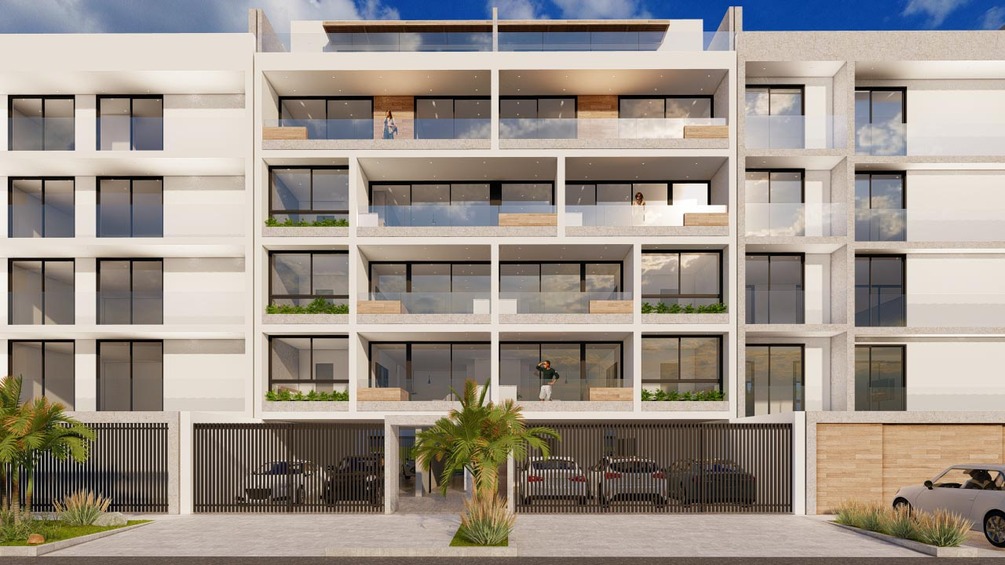

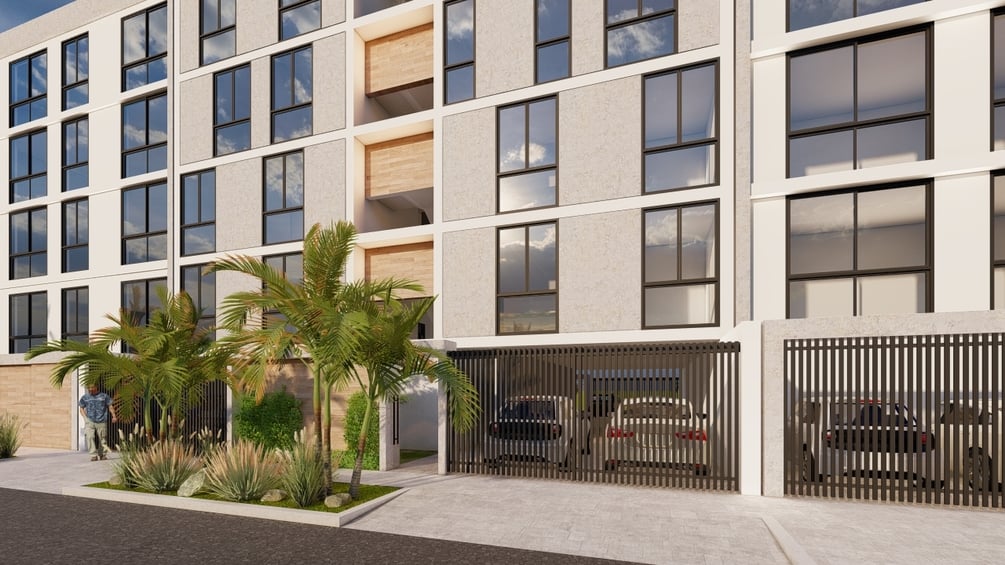

H. JPG Visualization images
4. ONCE YOU PURCHASED
The files will be delivered in .RAR format, requiring decompression using a free program such as WinRAR. Once decompressed, they will be ready for use!
PLEASE INSTALL FONTS BEFORE YOU OPEN THE FILES!
For questions feel free to send me an email:
You will receive the editable architectural files that were used for the economic and commercial analysis of the building.
